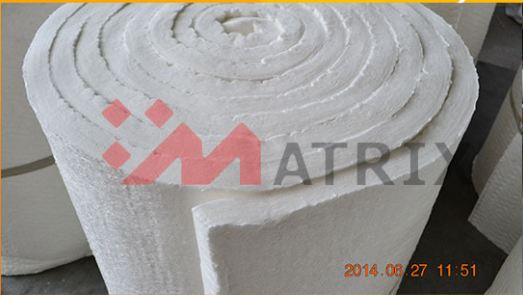

Product Overview: Ceramic Fiber Blanket
Our Ceramic Fiber Blanket is a top-tier insulation material crafted for outstanding performance in high-temperature environments. Made from high-purity alumina-silica fibers using an advanced needling process, this blanket offers remarkable strength, flexibility, and thermal efficiency. Completely inorganic, it produces no emissions during heating, ensuring safety and environmental compatibility. Available in various temperature ratings (up to 1430°C/2600°F) and densities options, it is tailored to meet the unique challenges of diverse industrial applications.
Key Features:
Exceptional Thermal Insulation: Ultra-low thermal conductivity reduces heat loss, boosting energy efficiency.
Durable Design: Advanced needling enhances tear resistance and withstands mechanical stress.
Broad Temperature Range: Performs reliably in both moderate and extreme heat conditions.
Installation Flexibility: Lightweight and easy to cut, wrap, or mold for seamless application on complex surfaces.
Chemical Resilience: Resists corrosion, maintaining performance in harsh industrial environments.
Minimal Heat Storage: Low thermal mass supports rapid heating and cooling for optimized processes.
Applications:
✓Steel Production: Insulates rolling mills, blast furnaces, and tundish covers, ensuring stable temperatures and process precision.
✓Steel Industry: Ideal for lining annealing furnaces, ladle covers, and reheating furnaces, ensuring consistent heat retention and worker safety.
✓Glass Manufacturing: Used in melting furnaces and annealing lehrs to maintain consistent heat for superior product quality.
✓ Aerospace Applications: Provides lightweight thermal protection for engine components and exhaust systems.
✓ Industrial Kilns: Acts as primary or secondary insulation in pottery and cement kilns, enhancing efficiency and reducing fuel use.
✓High-Temperature Equipment: Insulates industrial dryers and incinerators, ensuring safe operation and energy savings.
Velit, praesent pharetra malesuada
| Product Name | Common | Standard | High Purity | High Alumina | Zirconium Alumina | Zirconium Containing |
|---|---|---|---|---|---|---|
| Classification Temp (°C) | 1050 | 1260 | 1260 | 1300 | 1300 | 1430 |
| Recommended Max Usage Temp (°C) | ≤950 | ≤1100 | ≤1150 | ≤1200 | ≤1200 | ≤1250 |
| Product Code | MYTX-PT-02 | MYTX-BZ-02 | MYTX-GC-02 | MYTX-GL-02 | MYTX-DG-02 | MYTX-HG-02 |
| Linear Shrinkage (%) | 950°C×24h≤4 | 1000°C×24h≤4 | 1100°C×24h≤4 | 1200°C×24h≤4 | 1250°C×24h≤4 | 1350°C×24h≤4 |
| Thermal Conductivity (avg 500°C) W/(m·k) | ≤0.153 | |||||
| Shot Content (Φ ≥ 0.212 mm) (%) | ≤20 | ≤20 | ≤20 (natural) | ≤15 (synthetic) | ≤20 (natural) | ≤15 (synthetic) |
| Tensile Strength (25 mm thick) (MPa) | ≥0.04 | |||||
| Theoretical Bulk Density (kg/m³) | 96 / 128 (custom sizes available) | |||||
| Al2O3 | ≥40 | ≥43 | ≥44 | ≥52 | ||
| Al2O3 + SiO2 | ≥95 | ≥97 | ≥98.5 | ≥98.5 | - | - |
| Al2O3 + SiO2 + ZrO2 | ≥99 | ≥99 | ||||
| ZrO2 | 5~7 | ≥15 | ||||
| Fe2O3 | ≤1.0 | ≤1.0 | ≤1.0 (natural) | ≤0.5 (synthetic) | ≤0.5 | ≤0.5 |
| Product Size (mm) | Length, width as standard sizes; thickness 6mm–60mm | |||||
Why Choose Our Ceramic Fiber Blanket?
Our Ceramic Fiber Blanket is engineered to deliver unmatched insulation performance, making it a trusted choice for industries facing extreme thermal demands. Its versatility allows it to be customized for specific applications, whether as a direct lining or part of a modular system. Offering durability, energy efficiency, and ease of installation, this blanket helps businesses achieve operational reliability and cost savings in even the toughest conditions.
Learn how our Ceramic Fiber Blanket can transform your insulation solutions—contact us today!
