Product Overview: Ceramic Fiber Paper

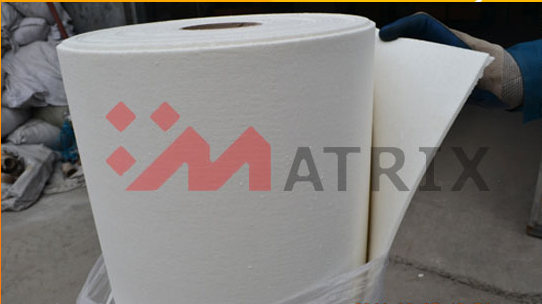

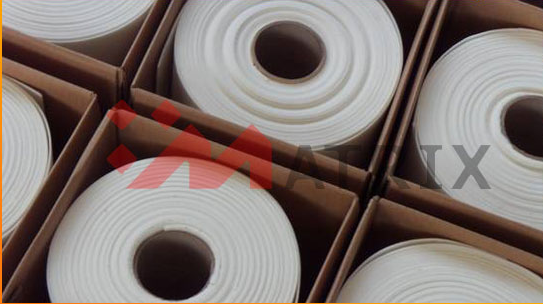

Ceramic fiber paper is a lightweight, flexible insulation material made from high-purity alumina-silica fibers. It is manufactured through a controlled, non-woven process to deliver uniform thickness, low thermal conductivity, and excellent handling properties. Designed for high-temperature applications, ceramic fiber paper serves as an effective barrier against heat, flame, and chemical corrosion.
Its smooth surface and mechanical strength make it ideal for precision insulation needs, including gaskets, thermal barriers, and wrapping materials in industries such as metallurgy, aerospace, and petrochemicals.
Key Features:
High temperature resistance up to 1260°C (2300°F)
Low thermal conductivity and excellent thermal stability
Lightweight, flexible, and easy to cut or shape
Uniform thickness and smooth surface texture
Low heat storage and energy-efficient
Resistant to most chemicals and thermal shock
Asbestos-free and environmentally friendly
Ideal for precision applications requiring clean, lightweight insulation
Applications:
✓Furnace and kiln linings
✓High-temperature insulation in industrial ovens
✓Back-up insulation for refractory linings
✓ Heat shields and fire protection barriers
✓ Aluminum and steel processing industries
✓Petrochemical and power generation facilities
| Product Name | Standard Ceramic Fiber Paper | High Alumina Ceramic Fiber Paper | Zirconium Ceramic Fiber Paper |
|---|---|---|---|
| Product Code | MYTX-BZ-06 | MYTX-GL-06 | MYTX-HG-06 |
| Tensile Strength (MPa) | ≥0.3 | ≥0.3 | ≥0.3 |
| Moisture Content (%) | ≤2 | ≤2 | ≤2 |
| Organic Content (%) | ≤10 | ≤8 | ≤8 |
| Theoretical Bulk Density (kg/m³) | 190~210 | ||
| Product Dimensions (mm) | Length and width as per standard; thickness 0.8~10 | ||
Why Choose Our Ceramic Fiber Paper?
Our Ceramic Fiber Paper is designed for high-temperature applications where flexibility, lightweight insulation, and thermal efficiency are critical. Manufactured from high-purity alumina-silica fibers, this paper provides excellent thermal stability, low thermal conductivity, and superior handling properties. Its uniform thickness and smooth surface make it ideal for gaskets, seals, and lining materials in demanding industrial environments.
Whether used as a heat barrier, wrapping material, or part of a multilayer insulation system, our Ceramic Fiber Paper offers outstanding performance, easy installation, and long-lasting reliability.
Learn how our Ceramic Fiber Paper can enhance your thermal management strategies—contact us today!
